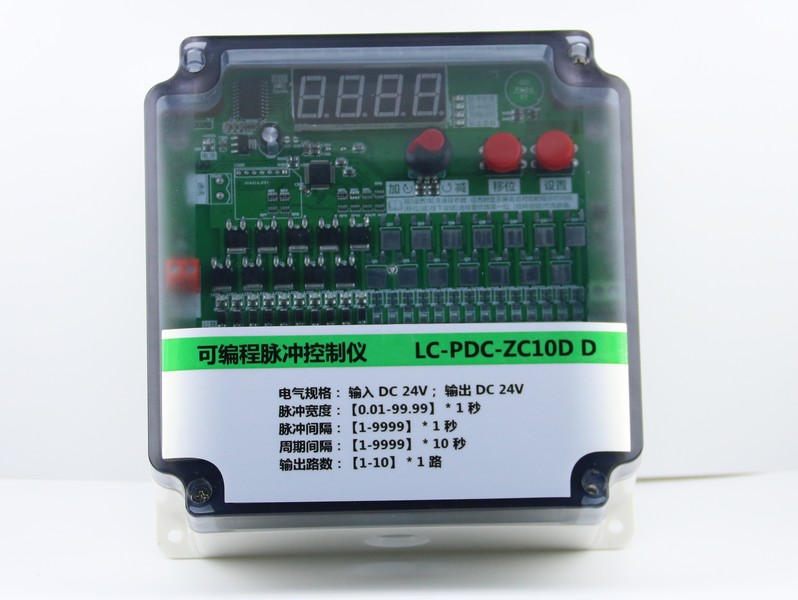

Dust collector pulse controller

The time for the pulse injection controller to output a continuous electrical signal is the pulse width. The time between two output signals is called the pulse interval. The time required for the controller to output electrical signal to complete a cycle is called pulse period.

Technical indicators:


1. Rated input voltage AC220V (1 ± 10%)

2. Rated output voltage DC24V (or AC220V)

3. Output pulse interval adjustment range 1-99 seconds

4. Output pulse width adjustment range 0.01-0.99 seconds

5. Output pulse period adjustment range 0-99 minutes

usage method:

1. Pulse width setting: (unit: 0.01s; maximum value: 0.99s) press the red function key to make the pulse width indicator light on, and turn the black setting key to directly adjust to the required time.

2. Pulse interval setting: (unit: 1s; maximum value: 99S) press the function key to make the interval indicator light on, and rotate the setting key to directly adjust to the required time.

3. Pulse period setting: (unit: 0 minutes; maximum value: 99 minutes) press the function key to make the period indicator light on, and rotate the setting key to directly adjust to the required time
