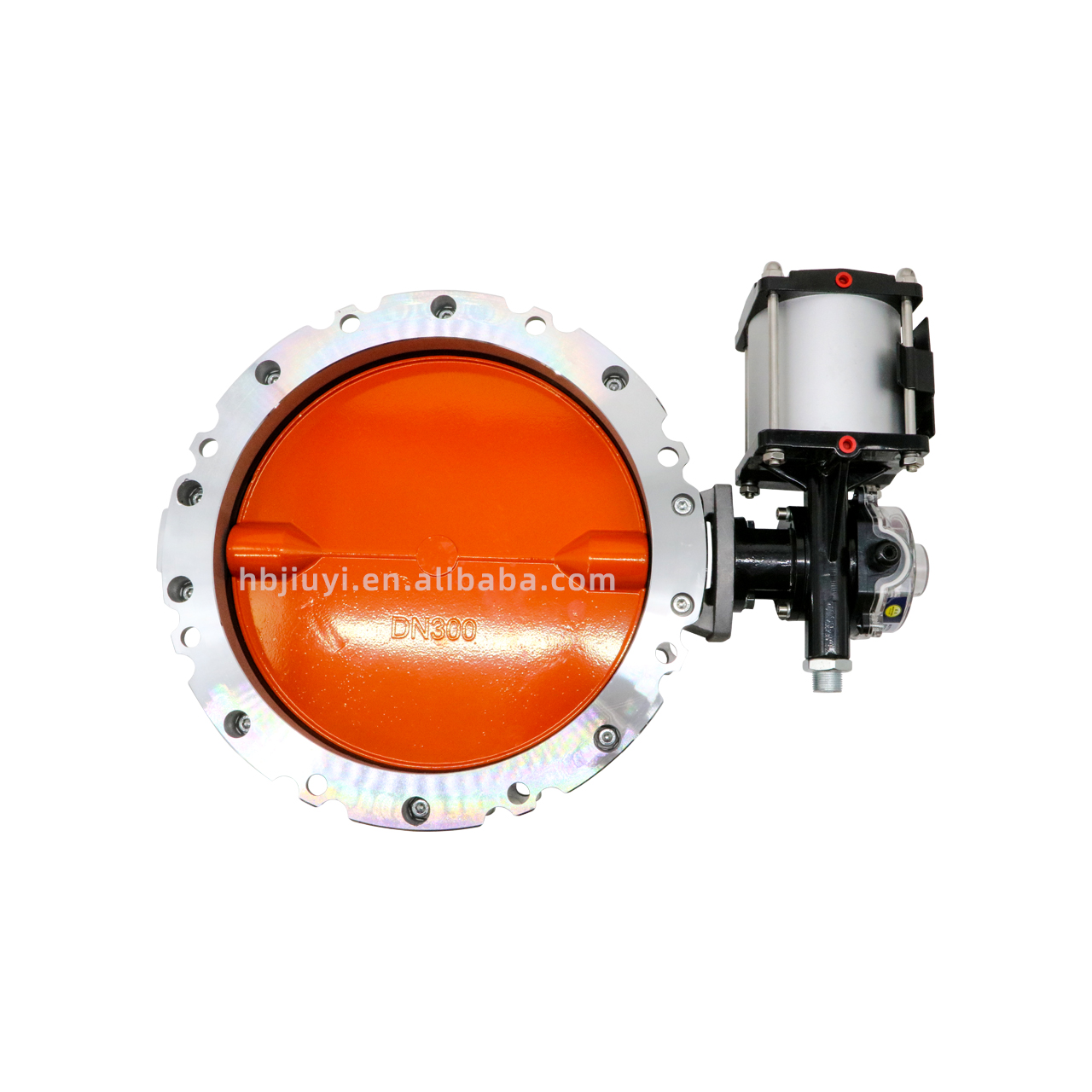

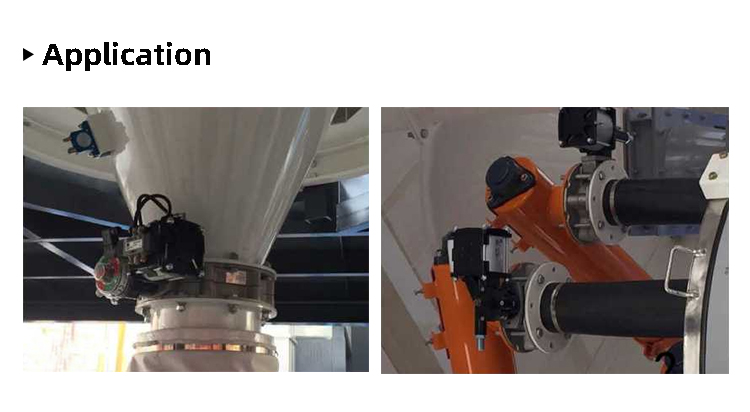

Butterfly valve body by a high pressure aluminum alloy body, deformation wear aprons, polymer composite butterfly valve. It is an ideal product for closing hopper, hopper and a powdery or granular material silo, is widely used in cement, concrete mixing station transmission steel gravity dust etc..Because of the special structure of the valve and the use of engineering materials, it is always a very economical and efficient selection.

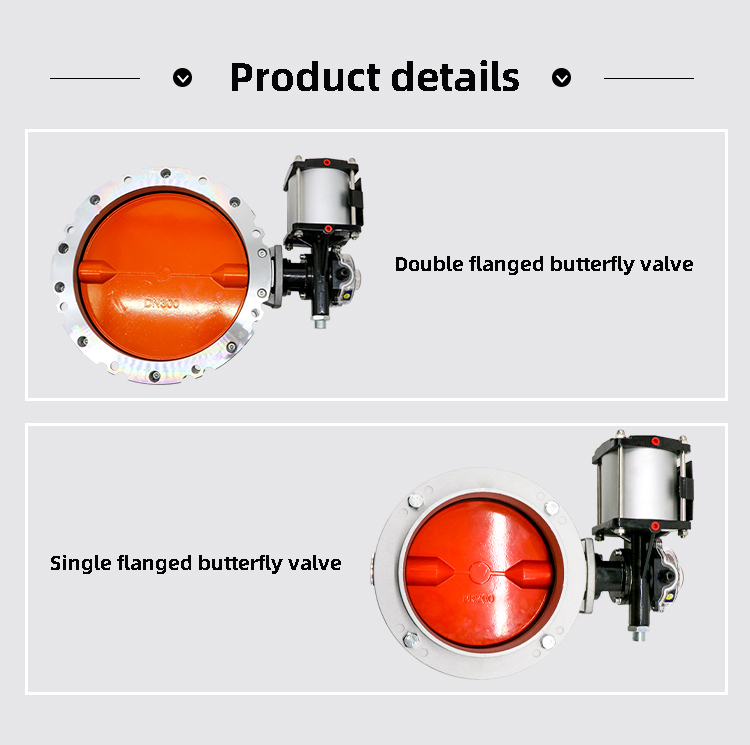

BV1F单法兰蝴蝶阀 Single flanged butterfly valve | |||||||||||||||||||
MODEL | φA | φB | φC | E | F | V | T | φH | G | φZ | φU | φN | |||||||
BV1F100 | 95 | 180 | 220 | 250 | 77 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV1F150 | 150 | 200 | 228 | 290 | 77 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV1F200 | 200 | 250 | 278 | 340 | 77 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV1F250 | 250 | 300 | 328 | 390 | 77 | 50 | 80 | 22 | 35 | M10 | M12 | 8-14 | |||||||
BV1F300 | 300 | 350 | 378 | 440 | 77 | 50 | 80 | 22 | 35 | M10 | M12 | 8-14 | |||||||
BV1F350 | 350 | 400 | 440 | 530 | 85 | 50 | 80 | 28 | 35 | M10 | M12 | 8-14 | |||||||
BV1F400 | 400 | 470 | 530 | 580 | 85 | 50 | 80 | 28 | 35 | M10 | M12 | 8-14 | |||||||
BV2F双法兰蝴蝶阀Double flanged butterfly valve | |||||||||||||||||||
MODEL | φA | φB | φC | E | F+S | V | T | φH | G | φZ | φU | φN | |||||||
BV2F100 | 95 | 180 | 220 | 250 | 115 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV2F150 | 150 | 200 | 228 | 290 | 115 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV2F200 | 200 | 250 | 278 | 340 | 115 | 50 | 80 | 22 | 35 | M10 | M12 | 4-14 | |||||||
BV2F250 | 250 | 300 | 328 | 390 | 115 | 50 | 80 | 22 | 35 | M10 | M12 | 8-14 | |||||||
BV2F300 | 300 | 350 | 378 | 440 | 115 | 50 | 80 | 22 | 35 | M10 | M12 | 8-14 | |||||||
BV2F350 | 350 | 400 | 440 | 530 | 123 | 50 | 80 | 28 | 35 | M10 | M12 | 8-14 | |||||||
BV2F400 | 400 | 470 | 530 | 580 | 123 | 50 | 80 | 28 | 35 | M10 | M12 | 8-14 |
