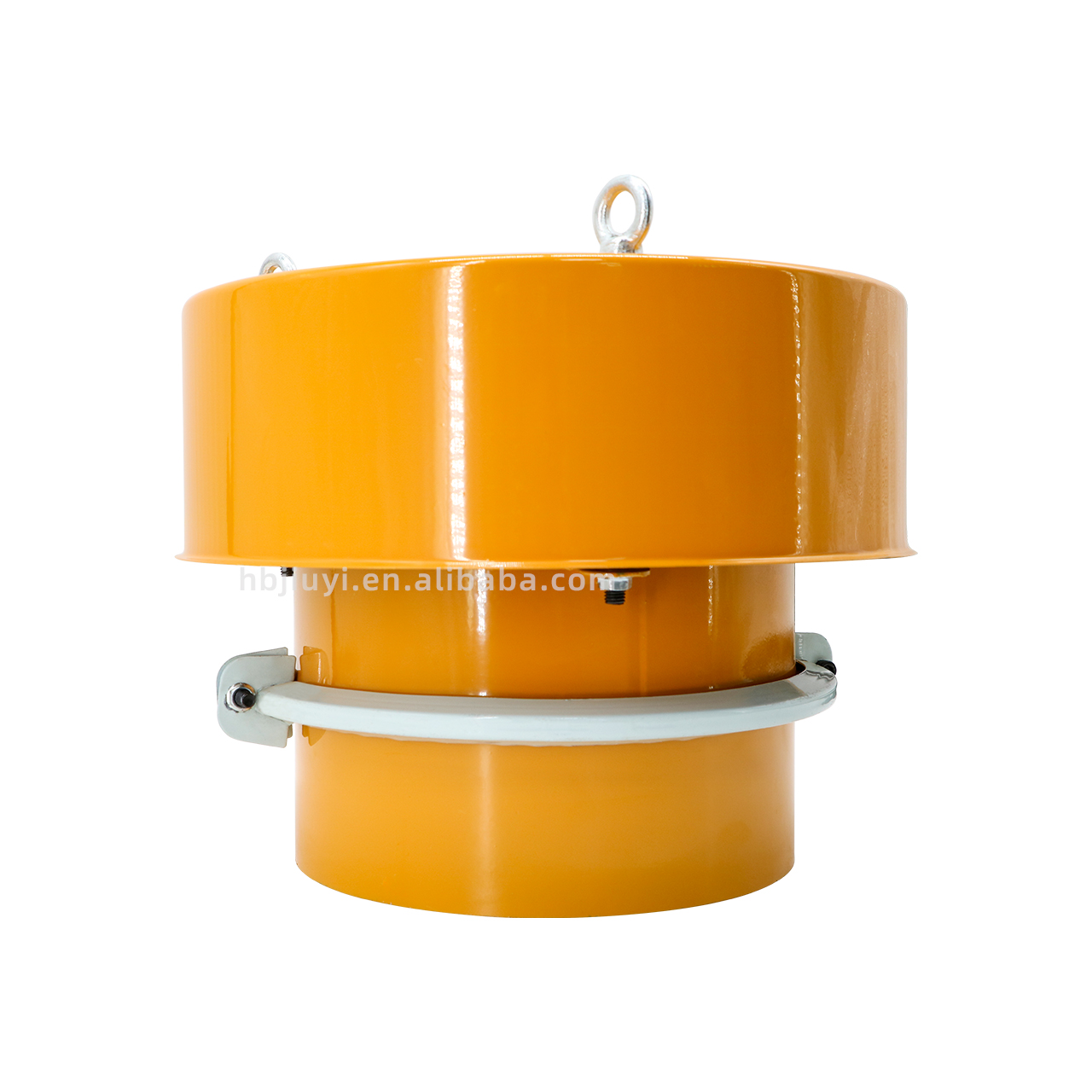

Safety valve/Pressure relief valve
Product DescriptionMaterial:Carbon steel body
Diameter:273 mm
Max air volume :9.000 M3 / h Max preset negative pressure-0.002 Bar
Max pressure :+ 0.05 bar
Weight: 9.5 kg
Function
Function
The pressure safety valve is an essential equipment in the standard powder silo system. It can not only release the excessive pressure in the silo, but also relieve the negative pressure.
If the difference between the air pressure of the silo and the outside air pressure reaches an abnormal state, the pressure safety valve will automatically open to ensure the absolute safety of the silo system.After the pressure returns to normal, the safety valve will automatically rese.
Pressure safety valve, the valve body is made of carbon structural steel, the surface is sprayed yellow, the valve plate is made of carbon steel plate (yellow), and it is specially sealed.
The safety valve is composed of three parts: the upper cover, the middle box and the lower box.
The lower box can be welded to the edge of the top cover of the silo, and the lower box and the middle box are connected by clamps for easy disassembly and maintenance
If the difference between the air pressure of the silo and the outside air pressure reaches an abnormal state, the pressure safety valve will automatically open to ensure the absolute safety of the silo system.After the pressure returns to normal, the safety valve will automatically rese.
Pressure safety valve, the valve body is made of carbon structural steel, the surface is sprayed yellow, the valve plate is made of carbon steel plate (yellow), and it is specially sealed.
The safety valve is composed of three parts: the upper cover, the middle box and the lower box.
The lower box can be welded to the edge of the top cover of the silo, and the lower box and the middle box are connected by clamps for easy disassembly and maintenance
