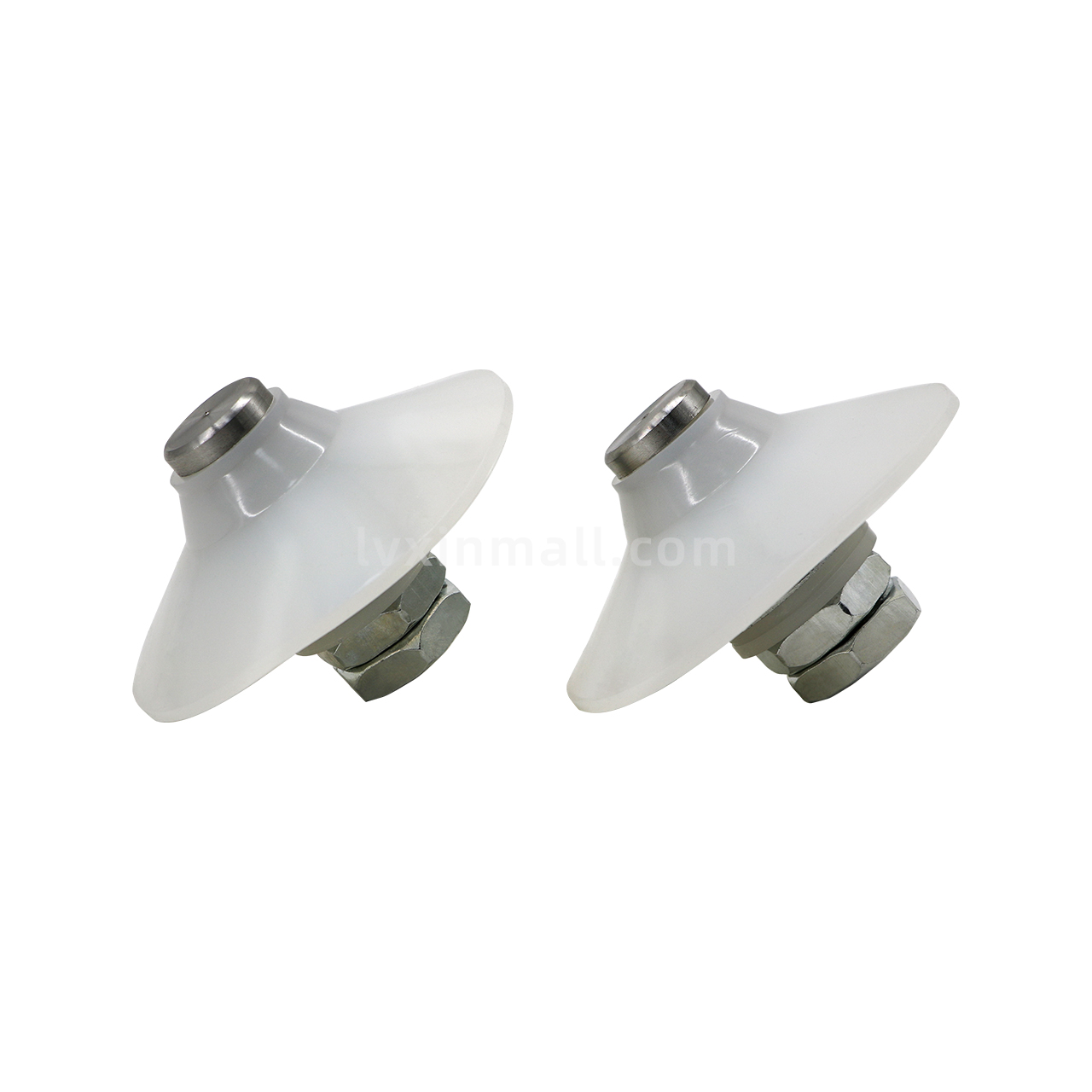

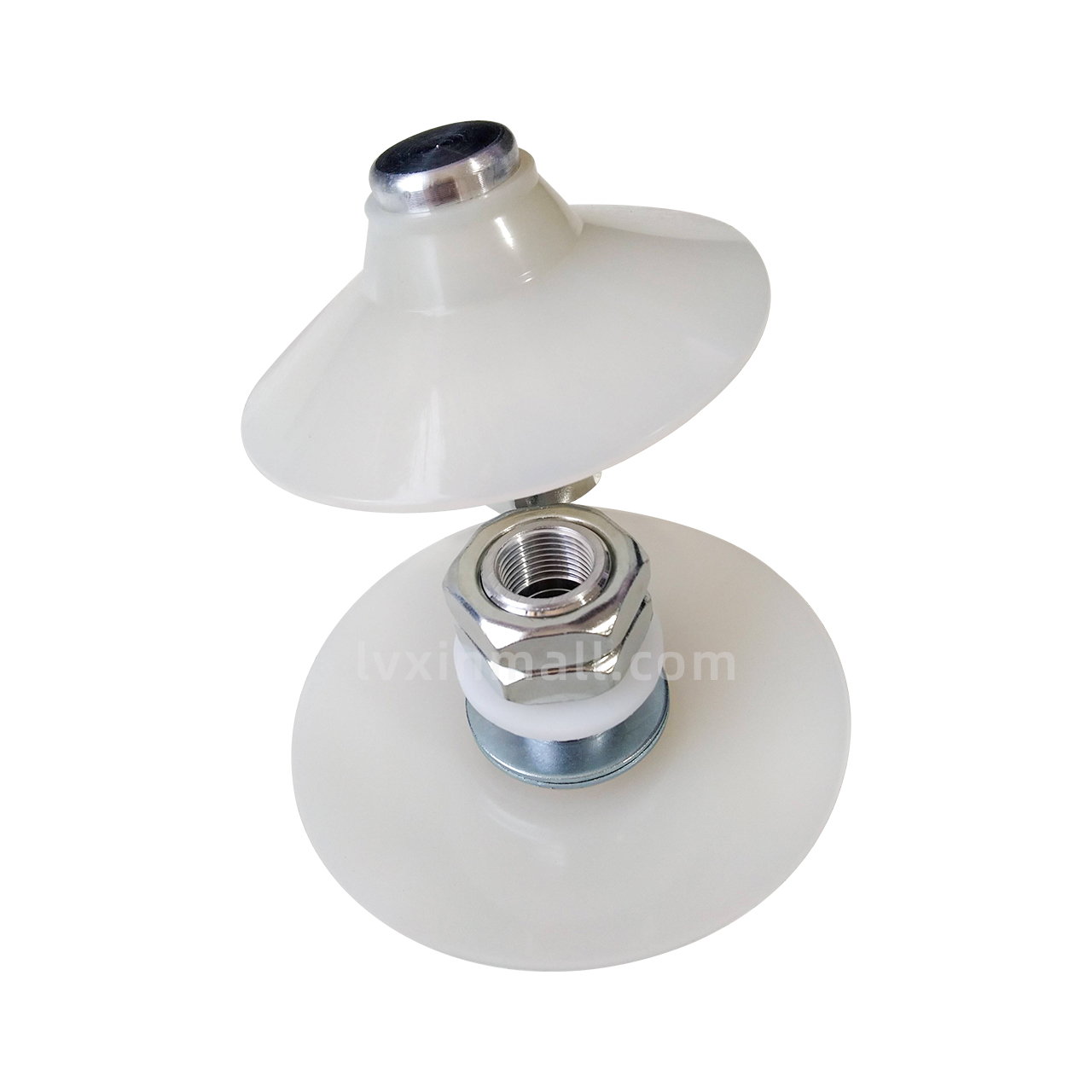

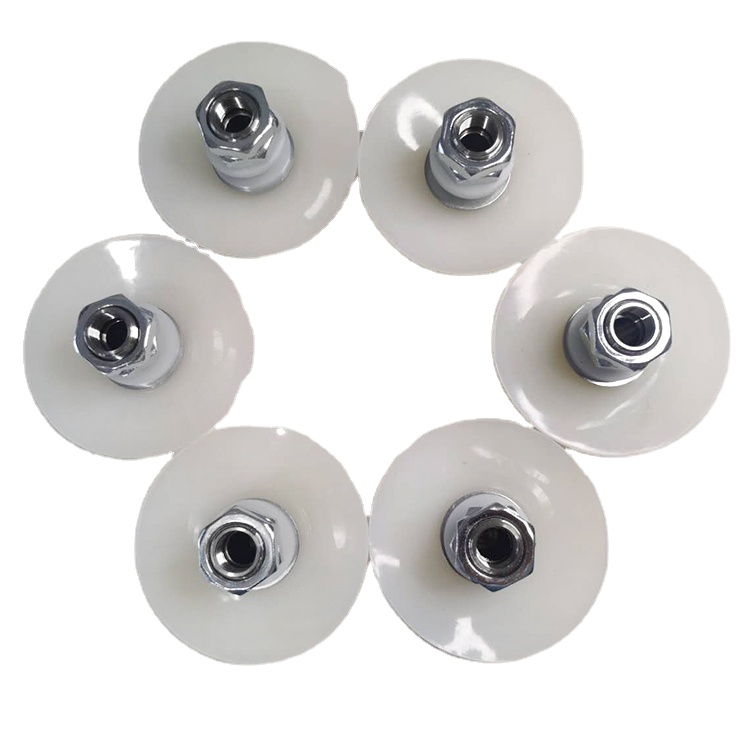

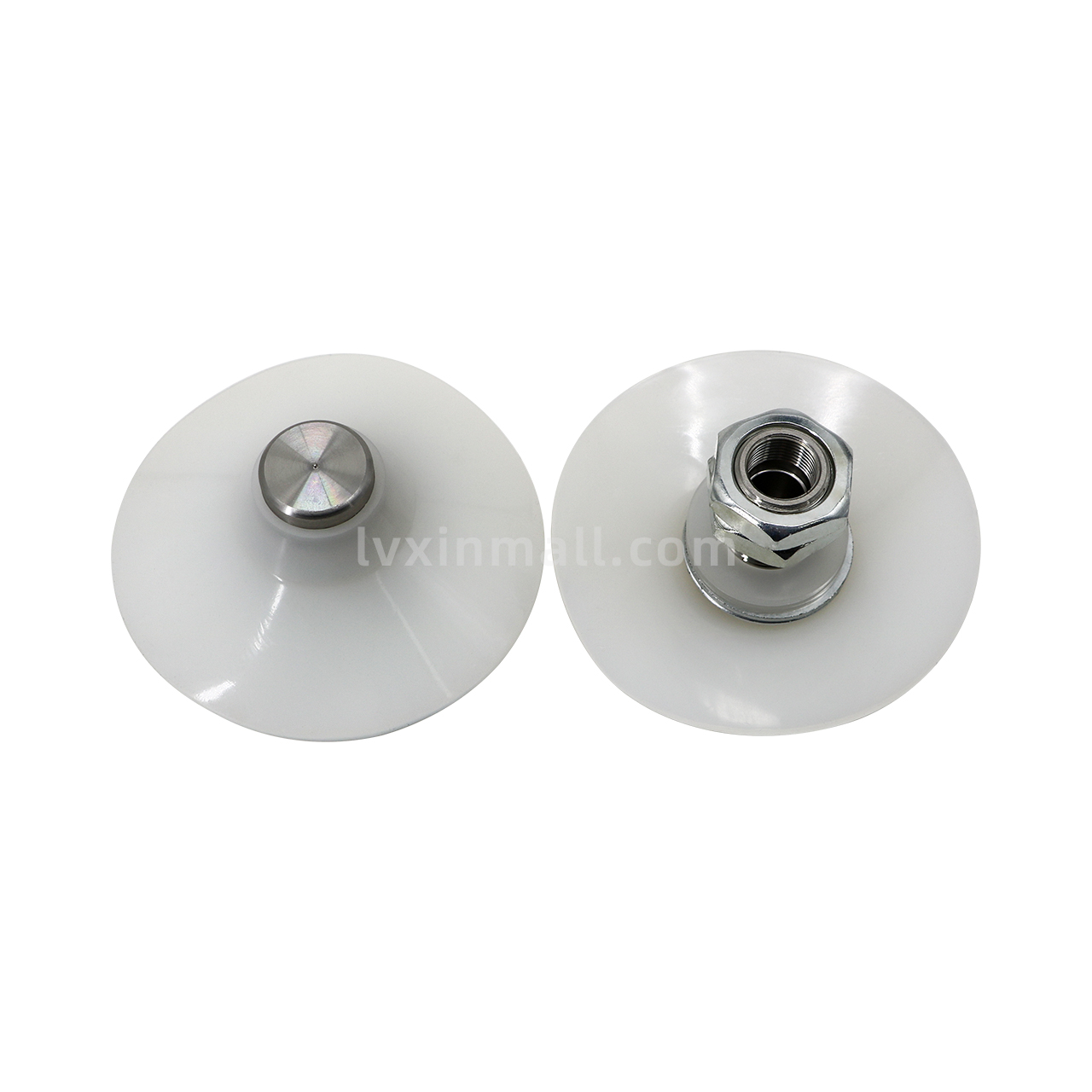

Vibration Assisted Flow Bowl
It is made of wear-resistant silicon-based rubber material. The compressed air flow is introduced through the silicon disc installed on the inner wall of the container to provide airflow impact and give vibration energy to the inner wall of the container, which can produce two actions of blowing and vibration, and has a good effect on the flow of granular and powdery materials.
The unique shape design of the product will not damage the hopper or the product even if the material with strong abrasiveness is processed.And due to the use of 2-6bar gas, no material will enter under the silicon disc. By adjusting the working air pressure from 2 bar to 6 bar, the vibration intensity of the silicon disc can be adjusted. It adopts the intermittent operation mode of up to 5 seconds, and the air consumption is very small.
Installation

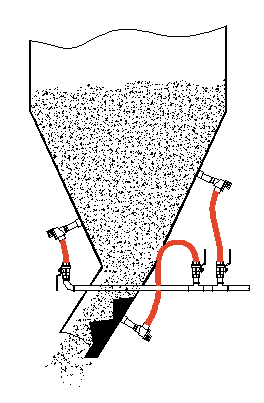

Open 22mm holes in the silo wall, install the Air Butterfly on the inner
wall of the silo, thread out of the silo, then install the rubber pad, flat
washer and two union nuts one by one, finally tighten the quick joint
and insert the trachea.
Open 22mm holes in the silo wall, install the Air Butterfly on the inner
wall of the silo, thread out of the silo, then install the rubber pad, flat
washer and two union nuts one by one, finally tighten the quick joint
and insert the trachea.

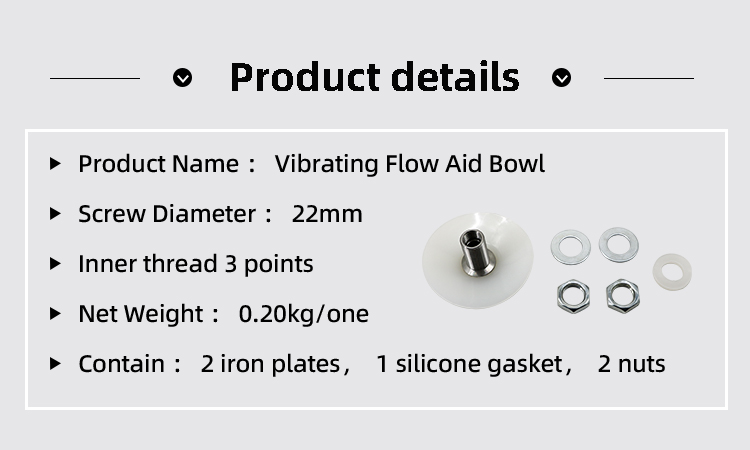

Basic Material: Imported High Strength Silica Gel
Color: White
Working Pressure: 34Kpa-400Kpa
Working Temperature: ≤205oC
Working Mode: Continuous or intermittent (adjustable)
